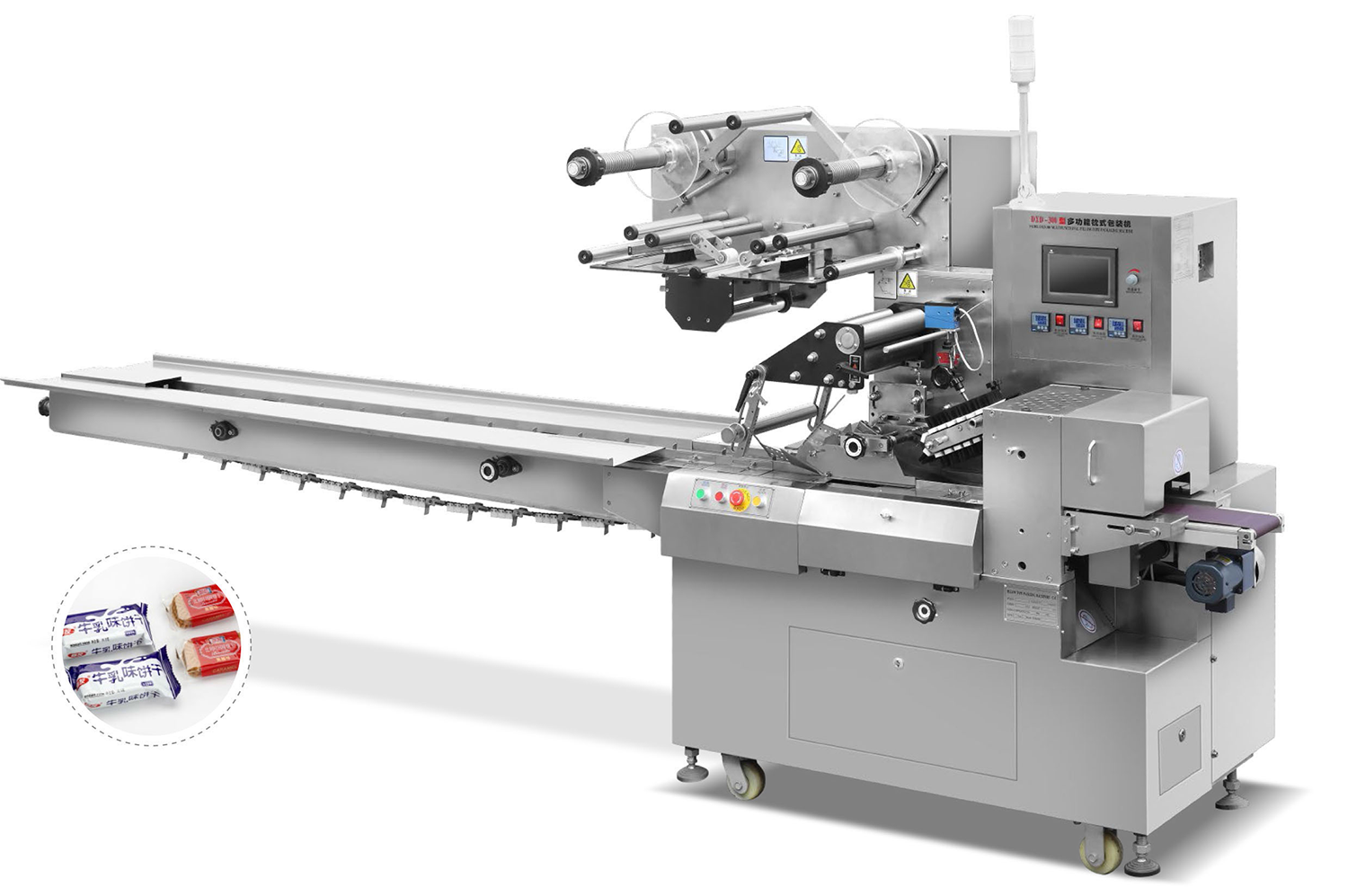

DXD-300高速全伺服枕式包裝機

DXD-300高速全伺服枕式包裝機

詳情

USE用途

Packing machine model: dxd-300 high speed full servo pillow packing machine.

包裝機型號:DXD-300高速全伺服枕式包裝機

It is used for packing products as biscuits, chocolates, cakes, cards,products for daily used etc.

適用于餅干、巧克力、蛋糕、卡片、日用品等的包裝。


Functions of packaging machine包裝機的功能

1. Equipped with high-speed automatic film connection function, high-efficiency automatic film change without stopping the machine.

1、枕式包裝機配備高速自動接膜功能,效率高率不停機自動換膜。

2. Can be freely configured on the touch screen, multi zone temperature control, excellent packaging and high quality sealing.

2、可在觸摸屏上自由配置,多區域溫度控制,出色的包裝和質量高的密封。

3. The super large material tray is most suitable to be used together with the material supply. It is equipped with a vibrating bucket unloading device to ensure the effect.

3、超大物料托盤z適合與物料供應一起使用配有振動斗下料裝置,確保效果。


MAIN TECHNICAL PARAMETERS主要技術參數

DXD-300

Max.Production Capacity

Packing shape

z大生產能力

包裝物形

40-200 (單刀Single Cutter)

80-400(雙刀Double Cutters)

200-400(三刀Three Cutters)

方形、長方形、圓形、橢圓形、片狀等。Square,rectangle,circular,ellipse and flake etc.

Packing Range /
Length of bag

Width

Height

包裝范圍/

袋長

寬度

高度

170-1000mm

35- 100mm

<60mm

80-500mm

35-100mm

<40mm

50-135mm

60-100mm

<30mm

Max.Dia.of Film
Max.Width of Film

包裝膜z大直徑

包裝膜z大寬度

350mm

300mm

350mm

300mm

350mm

300mm

Gross Power

Power Supply

總功率

電源

4.5kW

220V 50Hz

4.5kW

220V 50Hz

4.5kW

220V 50Hz

Gross Weight

Overall Dimension

總重量

外形尺寸

900kg

4300×850×1550mm

900kg

4300×850×1550mm

900kg

4300×850×1550mm

Packing Material

包裝材料

OPP、CPP、PET鍍鋁膜、鋁塑膜、紙塑、紙膠等單層多層等可熱封材料

建議使用外層PET厚度0.013mm,內層CPP厚度0.023~0.027mm ,復合低溫膜

OPP、CPP、PET Metallized film,Al-plastic film,Paper-rubber complex

Suggest to used wrapping film with material of PET13/CPP23-27

Note: We can design and manufacture according to customer's special needs. 注:用戶如有特殊規格,本公司可對包裝機另行設計制造.
